2015 Used Zoomlion 49M Concrete Pump Truck Mercedes Benz Chassis

Professional Sale: 2015 Zoomlion ZLJ5330THBBE 49m Truck-Mounted Concrete Pump (Mercedes-Benz Chassis)

Overview:
We are pleased to offer a fully refurbished and professionally maintained 2015 Zoomlion ZLJ5330THBBE truck-mounted concrete pump. This high-quality machine is mounted on a reliable Mercedes-Benz chassis and features a 5-section RZ-type boom, ensuring excellent reach and flexibility for a wide range of construction projects. Having undergone a comprehensive inspection and refurbishment process, this pump is in exceptional working condition and is ready for immediate, productive operation.

Detailed Technical Parameters:

1. Chassis Specifications:

• Chassis Model: Mercedes-Benz Actros 3341 (8x4)

• Engine Model: Mercedes-Benz OM 501 LA (V6)

• Engine Displacement: 11,946 cm³

• Rated Power: 300 kW (408 HP) @ 1,800 rpm

• Emission Standard: Euro V

• Transmission: 16-speed manual transmission

• Drive Configuration: 8x4 (four axles, rear drive)

• Fuel Tank Capacity: 400 Liters

2. Pumping System Specifications:

• Pump Model: ZLJ5330THBBE

• Theoretical Concrete Output (Max): 170 m³/h

• Theoretical Pumping Pressure (Max): 12.5 MPa

• Theoretical Vertical Pumping Height: 49 meters

• Theoretical Horizontal Pumping Distance: ~ 1,100 meters

• Cylinder Diameter & Stroke: Φ230 x 2,100 mm

• Hopper Capacity: 700 Liters

• Agitator Speed: ~ 8 rpm

3. Boom System Specifications:

• Boom Type: 5-Section RZ-type Folding Boom

• Total Boom Length: 49 meters

• Boom Vertical Reach: ~ 47.5 meters

• Boom Horizontal Reach: ~ 44 meters

• Boom Depth Reach: ~ 33 meters

• Boom Rotation: 365° continuous rotation

• Control: Proportional electro-hydraulic control with wireless remote

4. Hydraulic System:

• Type: Open-loop hydraulic system

• Main Hydraulic Pump: Tandem axial piston pump

• Hydraulic Oil Tank Capacity: 600 Liters

• Line Diameter: Φ125 mm

5. Refurbishment & Condition:
This unit has been meticulously inspected and refurbished to ensure peak performance. Key refurbishment activities include:

• Mechanical Inspection: Full inspection of the chassis engine, transmission, and driveline.

• Pumping System Overhaul: Inspection and replacement of wear parts as necessary, including cutting rings, seal rings, and delivery cylinder seals.

• Hydraulic System Service: Hydraulic oil and filter change; inspection of hoses, fittings, and valves.

• Boom & Outriggers: Structural inspection; lubrication of all joints and pins; functional test of all cylinders.

• Electrical System Check: Testing of the control system, both from the central console and the wireless remote.

• Cosmetic & Safety: Cleaning, painting of the boom and piping where required, and inspection of lights and safety markings.

6. Key Features:

• Proven Mercedes-Benz Chassis: Offers superior reliability, driver comfort, and parts availability.

• High-Performance Pumping Unit: Capable of handling high-volume pours for commercial and large residential projects.

• Excellent Reach: The 49m boom provides optimal flexibility for placing concrete on most mid-rise projects.

• Advanced Control System: Precise and smooth operation with redundant wireless remote control for safety and visibility.

• Excellent Value: A fully refurbished machine offering the performance of a newer model at a significantly lower capital investment.

This 2015 Zoomlion 49m pump truck represents an outstanding opportunity to acquire a powerful and reliable concrete placing solution. It is ideal for contractors seeking to enhance their fleet's capabilities with a machine that is ready to work hard and generate revenue.

Contact us today for a full inspection report, a detailed video, and a competitive price quote.

.

used Zoomlion 49M concrete pump truck

Mercedes Benz chassis beton pump

49 meters concrete pump truck

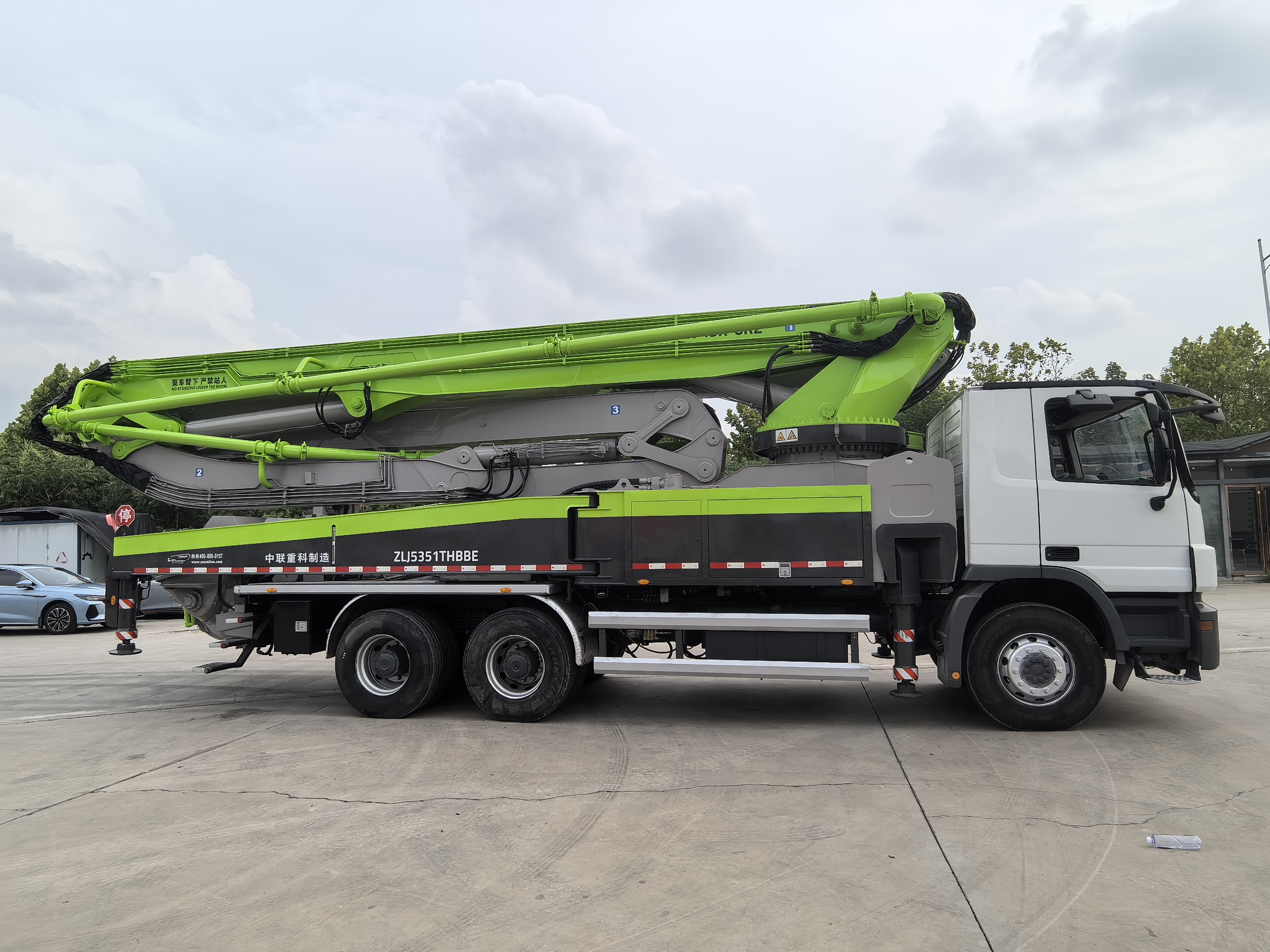

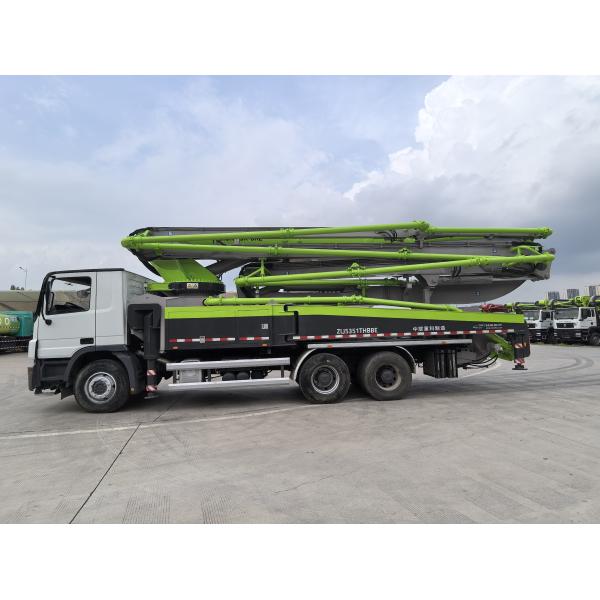

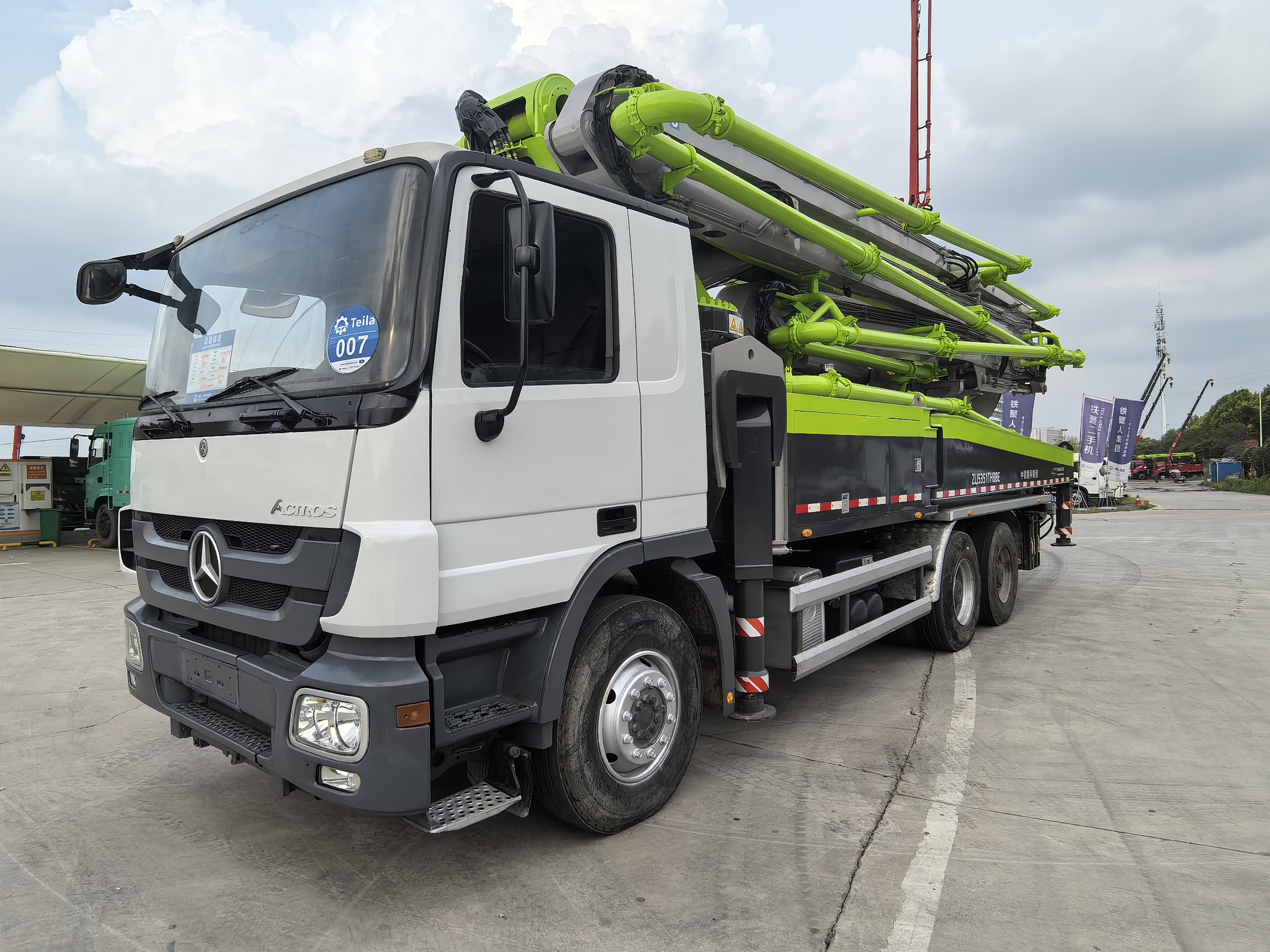

2015 Used Zoomlion 49M Concrete Pump Truck Mercedes Benz Chassis Images
